Flyin Thermal AWG Module 100GHz (DWDM Mux Demux)
  • Flyin Thermal AWG Module 100GHz (DWDM Mux Demux)
Flyin Thermal AWG Module 100GHz (DWDM Mux Demux)

Flyin Thermal AWG Module 100GHz (DWDM Mux Demux)

Delivery Time:
10 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

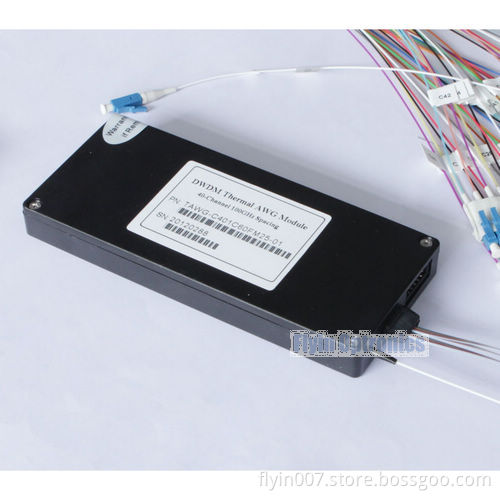

This component is designed for use within the C -band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor. Different input and output fibers, such as SM fibers, MM fibers and PM fiber can be selected to meet different applications. We can also offer different package for different products, inluding ABS box and 19" 1U rackmount.

Flyin Optronics offers a full range of AWG products, including 50GHz, 100GHz and 200GHz AWG. Here we present the generic specification for the 40-channel 100GHz AWG MUX/DEMUX component supplied for use in DWDM system.



Optical Specification (Flattop AWG)

Number of Channels

40

Number Channel Spacing

100GHz

100

GHz

Cha. Center Wavelength

ITU frequency.

C -band

nm

Clear Channel Passband

±0.1

nm

Wavelength Stability

Maximum range of the wavelength error of all channels and temperatures in average polarization.

±0.05

nm

-1 dB Channel Bandwidth

Clear channel bandwidth defined by passband shape. For each channel

0.4

nm

-3 dB Channel Bandwidth

Clear channel bandwidth defined by passband shape. For each channel

0.6

nm

Optical Insertion Loss at ITU grid

Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations.

4.5

6.0

dB

Adjacent Channel Isolation

Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels.

25

dB

Non-Adjacent, Channel

Isolation

Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels.

30

dB

Total Channel Isolation

Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of all other channels, including adjacent channels.

22

dB

Insertion Loss Uniformity

Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures.

1.0

1.5

dB

Directivity(Mux Only)

Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n

40

dB

Insertion Loss Ripple

Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port

0.5

dB

Optical Return loss

Input & output ports

40

dB

PDL/Polarization Dependent Loss in Clear

Channel Band

Worst-case value measured in ITU band

0.3

0.5

dB

Polarization Mode

Dispersion

0.5

ps

Maximum Optical Power

23

dBm

MUX/DEMUX input/ output

Monitoring range

-35

+23

dBm

IL Represents the worst case over a +/-0.1nm window around the ITU wavelength

PDL was measured on average polarization over a +/- 0.1nm window around the ITU wavelength
