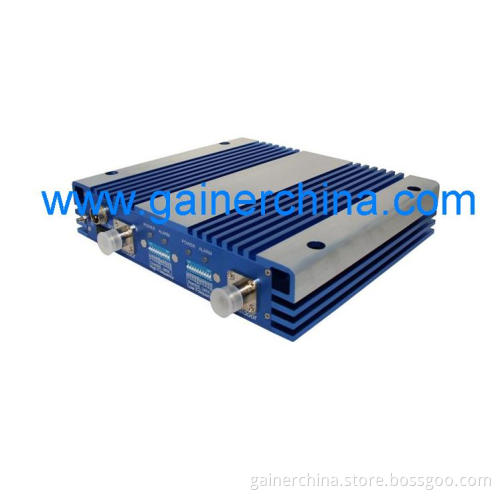

23dBm GSM+WCDMA Dual band Signal Repeater
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | CE |
| Transportation: | Ocean,Air |
Product Description
Product Description
Features:
1. Elegant and Compact design
2. Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
3. 31dB MGC(Manual gain control) 1dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
4. Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.
5. Low power consumption.
| Model Number | GCPR-GW23 | ||
| Electrical specification | Uplink | Downlink | |
| Frequency Range | GSM | 890-915Mhz | 935-960Mhz |
| WCDMA | 1920 ~ 1980 MHz | 2110 ~ 2170 MHz | |
| Max .Gain | ≥ 70dB | ≥ 75dB | |
| Max .Output Power | ≥ 15dBm | ≥ 23dBm | |
| Band width (-3dB) | Wide Band | ||
| MGC ( Step Attenuation ) | ≥ 31dB / 1dB step | ||
| Automatic Level Control | ≥ 15dB,auto shut off 31dB after 15dB | ||
| Gain Flatness | ≤6dB(P-P) | ||
| Noise Figure | ≤6dB | ||
| VSWR | ≤1.8 | ||
| Group Delay | ≤5μs | ||
| Frequency stability | ≤0.01ppm | ||
| Spurious Emission & Output inter-modulation | GSM Meet ETSI TS 151 026 V6.1.0 | ||
| WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 ) | |||
| CDMA Meet IS95 & CDMA2000 | |||
| LED Alarm | Standard | ||
| Power LED | Green light when power on. | ||
| ALC LED |
Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB, LED off after 5 second red color |
||
| Mechanical Specifications | Standard | ||
| I /O Port | N-Female | ||
| Impedance | 50 ohm | ||
| Operating Temperature | -25ºC~+55ºC | ||
| Environment Conditions | IP40 | ||
| Dimensions | 250x220x52mm | ||
| Weight | ≤ 3.5Kg | ||
| Power Supply | Input AC90~264V,output DC12V / 3A | ||
