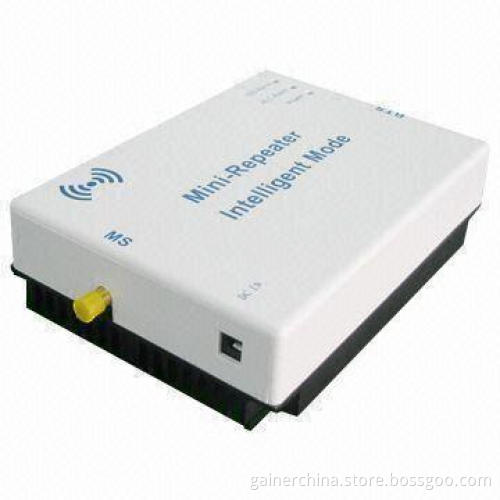

GSM Intelligent Repeater

GSM Intelligent Repeater *High gain, easy installation and operation. *Use ALC and AGC technology, adjust extent automatically. *LED Light Working & Signal Condition Indicators. *Dependability stand by GB6993-86 standard. *Compatibility of electromagnetism according with ETS300 609-4. Model Number GCPR-G10I GCPR-G15I GCPR-G20I GCPR-G23I GCPR-G25I Frequency UL: 890-915MHz DL: 935-960MHz Output Power(Max) 10dBm 15dBm 20dBm 23dBm 25dBm Gain ≥60dB ≥60dB ≥65dB ≥65dB ≥65dB Automatic Level Control ≥20dB Noise Figure ≤5dB Gain Flatness ≤5dB (p-p), Automatic Gain Control 30dB in step of 1dB (Auto) Input Power Range ≤-25 dBm IM3 ≤-45dBc Spurious Emission 9KHz~150KHz ≤-36dBm 150KHz~30MHz ≤-36dBm 30MHz~1GHz (out of band) ≤ -36dBm 1GHz~6.7GHz ≤ -36dBm Group Delay UL≤1s Operating voltage AC 220V
