ST-303B Air pressure gun,antistatic air gun
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 2 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Shen zhen Mingda Technology Co.,Ltd
Unit 2, Huakang building, Huafu Road, Futian district, Shenzhen, China

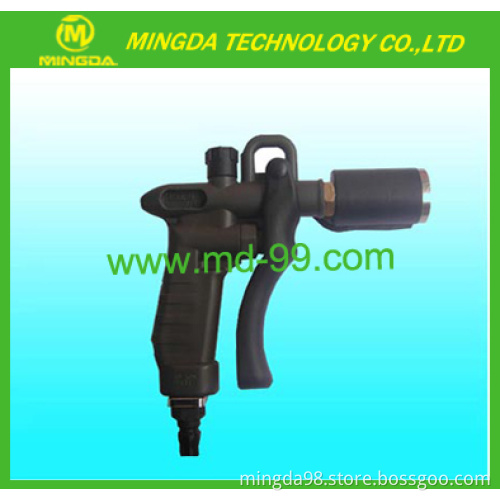

ESD Ionizing Air Gun ST-303B Air pressure gun /antistatic air gun /hot air welding gun haracters:
ST-303B Ionizing air gun is a handheld device, which provides concentrated flows of high pressure ionized air to eliminate dust and neutralize static charges on object surfaces.
The effective distance of the guns is up to 1 meter, it is operated with power supply, which needs to be ordered separately.
Techneque parameters:
|
Input Voltage |
110V/220V |
|
Current Consumption |
Max.0.8/0.4A |
|
Operating Temperature |
0-50 |
|
Air Volume |
4.0kg |
|
Size of H.V.Transformer |
200mm(L)135mm(W)89mm(H) |
|
Max.Air Pressure |
100psi |
|
Air Consumption(30psi) |
1.3SCFM |
|
Air Consumption(45psi) |
1.6SCFM |
|
Air Consumption(88psi) |
2.2SCFM |
|
HV cable length |
3meters |
|
Operting air velocity |
10m/sec |
Test results:
|
Discharge Time(5000V to 500v at15cm (5000V- 500V 15cm) |
1.3sec |
|
Ion Balance |
0V15V |
Functions:
It is widely used in electronic product, electronic assembly line, spray coating device and medical manufacturing etc.
