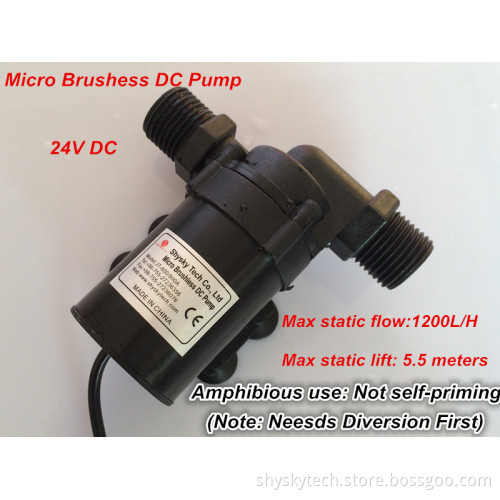

24V Micro Brushless DC Pump Solar Power DC Pump 800/800A-G,1200PH 5.5M, 28.8W for Water cycle SYS, Submersible, Maintenance free

This is a high-quality made DC submersible pump

Built by a brushless motor so that quieter and last longer than a non-brushlesspump, plus, it will not generate electric spark like the non-brushless pump does,so it's safer, can be used to pump oil (inflammable fluid)

Super long working lifespan (more than hours 30000), maintenance-free

Small size, low consumption, low noise (less than 40dB)

Submersible and entirely waterproof, easy to install and use

Can be used to pump Water, alcohol, diesel, or other liquids with good mobility

Variety of power supplies: solar panel, DC electric source and battery

photo QQ56FE724720141225162531_zps93a9fa4e.jpg

Bottom with four suction cups, can be arbitrarily fixed on a smooth surface.

Specifications:

Operating voltage: 9-24V (voltage more than 24V is not advised), current 1.2A at 24Vdc, Max static head 5.5meters, Max horizontal flow 1200L / H. (Ultra power saving)

Materials: Pump body with High-temperature-proof plastic material. High strength and durable stainless steel shaft.

Structure: with four suction cups on the bottom, can be arbitrarily fixed on as mooth surface.

Power cord: diameter 3.0MM waterproof round wire length of 2 meters and waterproof connector.

Product size: 85MM * 89.5MM * 42MM (including water inlet and outlet)

Pump outlet diameter: (1/2 thread) OD 20MM, ID16MM

Pump inlet diameter: (1/2 thread) OD 20MM, ID16MM

Suitable medium: water, oil, and other acid-base solution. (Land use when pumping acidic liquids, submersible installation is not advised at this case)

Max Operating Temperature: Max Operating Temperature: resistance to high temperature of 100 degrees. Pumps can dive at room temperature, land use at high temperature (>65C).

photo 800G-24VDC_zps2acdd86d.png

Amphibious 2 use. Non-self-priming, water should be able actively flow into inlet of pump at land use connecting with outside pipe. Long time work without fluids inside pump can be damagable.

Applications:

Products can be widely applied to water heater pressurized plumbing mattresses,hot water

Circulation pumps, feet massage bathtub, humidifiers, air conditioners, washing machines,

Small-scale irrigation, medical equipment, cooling system, heating system,processes fountain

Pump, the food sector, solar water heaters, pumps, equipment of water circulating pump, washing machine circulation pump, soilless cultivation, sanitary pump, etc.
