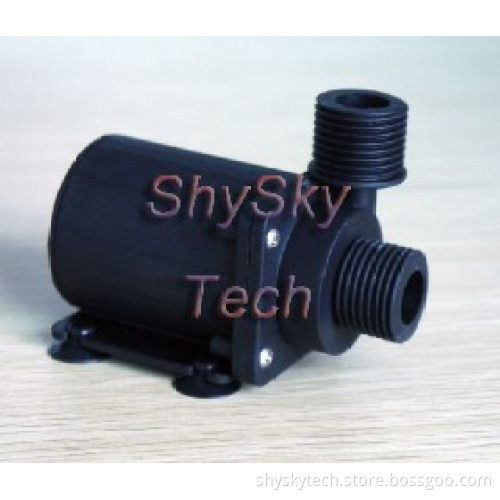

12V solar brushless DC pump water cooling pump

12V solar brushless DC pump /  floor heating / computer automobile water cooling pump high temperature mute Maintenance-free

It is our latest brushless DC pump product, ceramic shaft and ceramic sleeve, more muted. The consecutive life expectancy of can be over 100,000 hours. Amphibious 2 use. Non-self-priming, water should be able actively flow into inlet of pump at land use connecting with outside pipe. Long time work without fluids inside pump can be damagable.

pump can cling to the wall

Head-Flow Rate-Voltage Curve: (can be customized for bulk demands)

How to Choose pump:

1. Make sure the working voltage, current, head and flow. The Max head means the static head. The pump can lift to the max heightwhen there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump.

2. Make sure the dimension(threaded interface or not, the direction and diameter of outlet and inlet).

3. Working environment(temperature and medium).

4. Other functional requirements, such as time control, motion control, pressure control, flow control, and speed adjustment.

Note:

1. Working at rated voltage. The positive pole isred wire, the negative pole is black wire.

2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside water installation, you should make sure it is installed blow the liquid surface)

3. When blocking, long-running is not allowed.

4. Preventing any hard particles entering the pumps.
