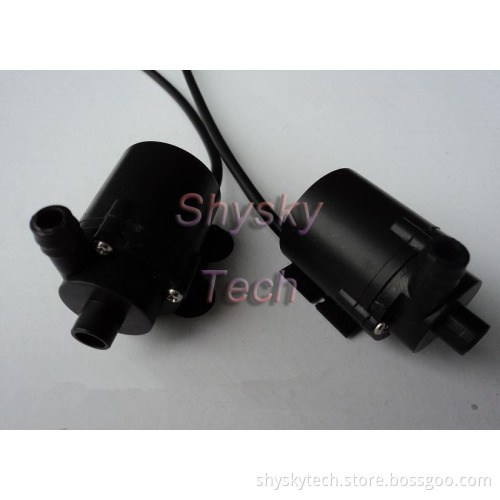

6-12Vdc Mini Brushless DC Pump Low Noise 30dB

6-12Vdc Mini Brushless DC Pump Low Noise 30dB

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Features:

Super long working life(more than 100000 hours)

Adopt high performance ceramic shaft

The axis is enclosed with static sealing, not dynamic, which can avoid leaking problems

Amphibious design

Submersible installation and entirely waterproof

Low consumption

Low noise(30dB within 0.1m)

Can be used in many fields, such as computer cooling system, Garden fountain, Aquarium, car cooling system, humidifier, air conditioner, and many other cooling and circulation systems.

JT160-1-bak

Specifications:

Size and weight: 43.6mmx28.8mmx28mm, 45g

Dimensions of inlet and outlet: inlet 8.2mm outlet 7.8mmRated voltage: DC12V

Working voltage range: DC6V ~ DC12V

Working current: 310mA

Power supply: can be matching battery, PV panel, source adapter that connected with AC power or other DC power sourceMax Head: 1.8mMax Static flow rate: 200LPHNoise class: 30dB within 0.1m, ultra-quiet

Materials:Pump body with high-temperature-proof plastic material. The sleeve and shaft with high-strength ceramics. (Note: usually common pump only with the ceramic shaft, without ceramic sleeve)

Structure: with three suction cups on the bottom, can be arbitrarily fixed on a smooth surface.

Power cord: diameter 3.0MM waterproof round wire length of 0.5 meters.Fluid temperature: range from 0 degrees to 75 degrees (submersible installed for long time when temp. >65C not advised)With brushless DC motor driving, without brush friction and spark;

Suitable medium: can be water, oil, and other acid-base solution. (Land use when pumping acidic liquids, submersible installation is not advised at this case)Low start-up current, high efficiency, stable and reliable, low-power, energy-saving, environmental protectionCeramic shaft with high abrasion resistance, continuous service life of 20,000 hours or morePumps can be amphibious, with Waterproof grade: IP68

Pump head, flow rate, and power can be customized according to customer requirements for bulk demands

pic-0021-20130109 pic-0144-20130109 pic-0148-20130109 JT160-realpumping-bak

JT160-dimension JT160-curve

Package included

12Pcs x 12V Mini DC water pump

How to Choose pump:

1. Make sure the working voltage, current, head and flow. The Max head means the static head. The pump can lift to the max heightwhen there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph).

2. Make sure the dimension(threaded interface or not, the direction and diameter of outlet and inlet).

3. Working environment(temperature and medium).

4. Other functional requirements, such as time control, motion control, pressure control, flow control, and speed adjustment.

NOTE when using:

1 Work at over-voltage is forbidden. Voltage can be highly more than rated voltage for Battery with more than 5AH at full capacity when there is no voltage-limitation measure. Pls test the supply voltage before working if you are not sure about it.

2 No direct AC Power supply.

3 About the Max static head. Pump with 1.8m head doesn't mean that it can spray as high as 1.8m when connecting with power supply. The real mean of head is that the vertical height of the water column in the plumbing. Spray head is much lower than head.

4 Regulated power supply and switching power supply are advised for more than 0.8A for a certain margin.

5 Pump is not allowed to disassembly unauthorized. Ceramic shaft and sleeve are precisely installed and it's difficult for non-professionals to reassembly. We are not responsible for quality problems caused by this.

6 Ferromagnetic impurity and particles should not be in pump for they affect magnetic actuator and bearing friction. Pump should be promptly cleaned when transporting media that is easy to crystallize or precipitate( Clean operation: pumping clean water for 1min). Pls filter articles before inlet when pumping fluids with solid particles.
