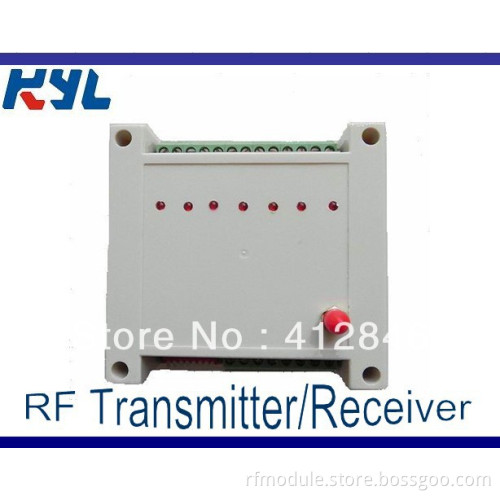

KYL-815 4-way industry i/o module 433MHz 2km-3km ON-OFF wireless control tank level controller

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Express

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	5000pcs/month
Supply Ability:	5000pcs/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Transportation:	Express

Product Description

This 4-way ON-OFF module is to transmit the ON-OFF condition to a remote place wirelessly in time. When here the switch condition is ON, the output in the remote place is ON. When the local switch condition is OFF, the other terminal is OFF.

Features:

1. 4-way isolated input, high reliability and stability.

2. 4-way relay dry contact output, contact current is 220V, 5A.

3.Collocated with a wireless data module inside whose transmitting distance is about 2km-3km;

4.the working frequency 433MHz (450 or 470MHz also available ); (pls tell us what frequency you need ? )

5.RF power: 1000mW;

6.Receiving sensitivity: -120dBm

7. Receiving current: 60mA; transmitting current: 350mA

8. Power supply: DC 12V-30V

9.data rate : 1200pbs/2400bps/9600bps/19200bps (pls tell us what data rate you need ? )

9. Dimension: 95mm x 90mm x 40mm

Pin Definition:

Port name	Pin No.	Definition	remarks
COM1	1	GND	GND
	2	VCC	DC:12-30V
	3	-	No conection
	4	-	No connection
	5	-	No connection
	6	OUT1	1st way relay day contact output
	7		1st way relay day contact output
	8	OUT2	2nd way relay day contact output
	9		2nd way relay day contact output
	10	OUT3	3rd way relay day contact output
	11		3rd way relay day contact output
	12	OUT4	4th way relay day contact output
COM2	1	IN1	1st ON-OFF input
	2	GND	1st ON-OFF input
	3	IN2	2ns ON-OFF input
	4	GND	2ns ON-OFF input
	5	IN3	3rd ON-OFF input
	6	GND	3rd ON-OFF input
	7	IN4	4th ON-OFF input
	8	GND	4th ON-OFF input

815_04 815_03

Welcome to contact Sarah for more information.sales01(at)rf-data(dot)com
