XFP Transceiver
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3000/month |
| Supply Ability: | 200 |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9001,ISO14001,RoHS |
| Transportation: | Air |

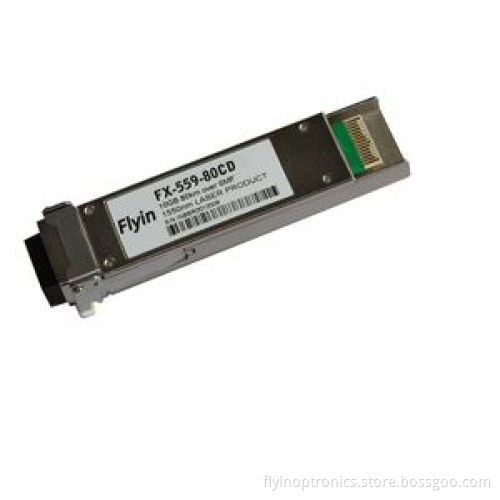

Flyin Optronics` XFP Transceivers are Small Form Factor 10Gbps (XFP) transceivers and compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and leads free per Directive 2002/95/EC3.
The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser or DFB, VCSEL. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.
Features
- Supports 9.95Gbps to 10.5Gbps bit rates
- Hot-pluggable XFP footprint
- XFP MSA package with duplex LC connector
- No reference clock required
- Compatible with RoHS
- +3.3V +1.8V power supply
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
Applications
- 10GBASE-SR/LR/ER/EW/ZR at 10G Ethernet
- 1200-Mx-SN-I 10G Fiber Channel
- SONET OC-192 &SDH STM 64
