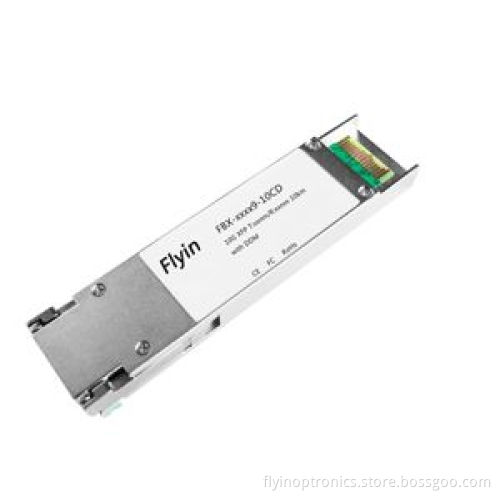

BIDI XFP Transceiver

Flyin Optronics` BIDI XFP Transceivers is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.3Gb/s, it designed to be compliant with XFP MSA. The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC, it`s data link up to 10km or 40km in 9/125um single mode fiber.

Features

• Supports 9.95Gb/s to 10.3Gb/s data rates
• Hot-pluggable XFP footprint
• 1270/1330nm DFB laser Transmitter and 1330/1270nm PIN Receiver
• XFP MSA package with LC connector
• No reference clock required
• Loop Back Support.
• +3.3V.+1.8V power supply
• Power dissipation <2W
• Compatible with RoHS 6(lead free)
• Built-in digital diagnostic functions
• Temperature range 0°C to 70°C

Applications

• 10GBASE-BX 10G Ethernet at 10.3125Gbps
• 10GBASE-BX 10G Ethernet at 9.953Gbps
• SONET OC-192 SR-1 SDH STM I-64.1
